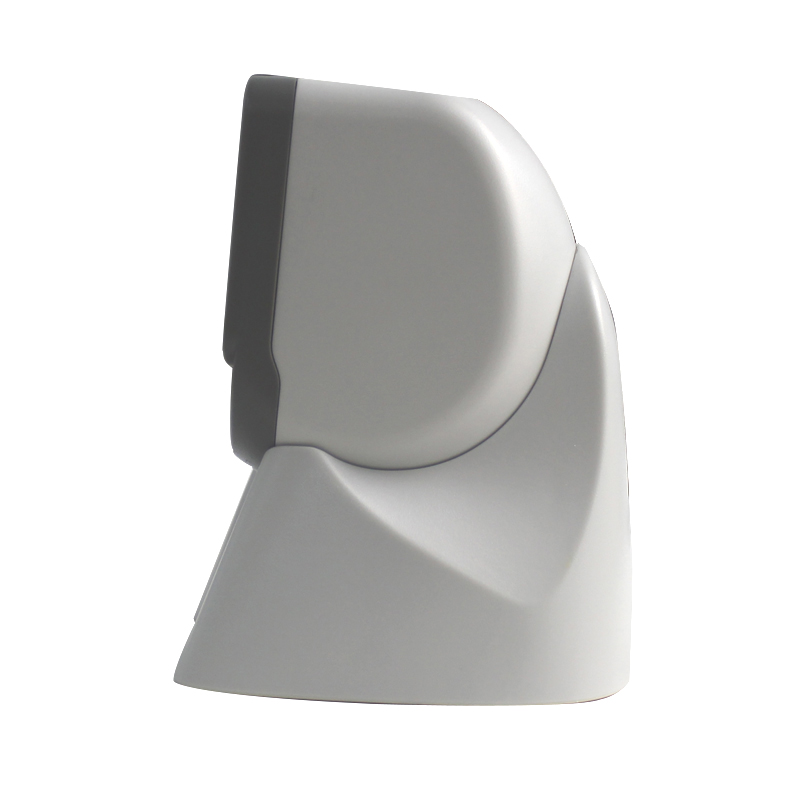

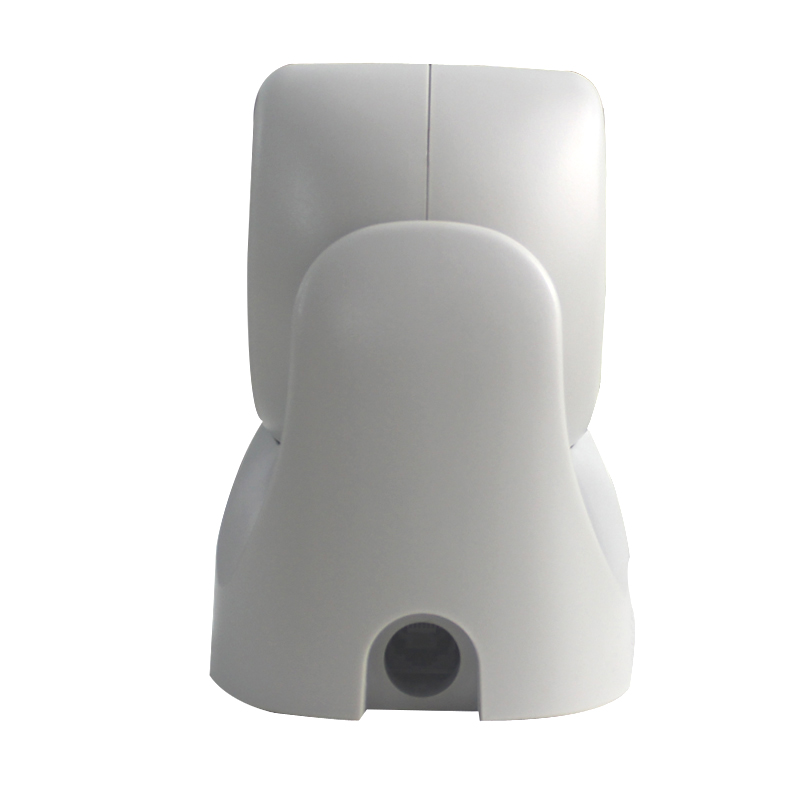

| Product name : Omnidir ectional orbit scanner |
| Item : PT-36 |
| Price : |
 |
|
|
|
| Details : |
PT-36
Light source: Visible Laser Diode 650nm
Line NO.: 24lines
Scan Rate: 1180±5% Scan Lines Per Second
Scan Pattern: Omni directional:5Fileds of 4 parallel lines
Print Contrast: 30% minimum reflectance difference
Decode Capability: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN 128, Coda bar, Code 25 non-interleaved, Code 25 interleaved , Matrix 2 of 5, MSI, Post Bar, etc
Support Interface: PS2 Keyboard, USB、RS232
Voltage .Power: 5VCD±10% 1.6W
Laser-level: Class1:IEC60825-1
EMC: FCC part 15class B,CE En55022B,VCCI,BSMI
LED Indicator: Red and Blue
Weight: Net :470g Include package and accessory:780g
Host Size: 116mm x117mm x147mm
Package Size: 240mm x140mmx140mm
Crash resistant: Can withstand 1.5M free fall
Operating: 0℃ to 40℃ (32℉ to 104℉)
Storage Temperature: -20℃ to 40℃ (-4℉ to 104℉)
Humidity: 5%～95% Relative humidity, Non-condensing
Environmental: Sealed to resist airborne particulate contaminants
|
